2025 IMS SHIP LOADER

About the Machine

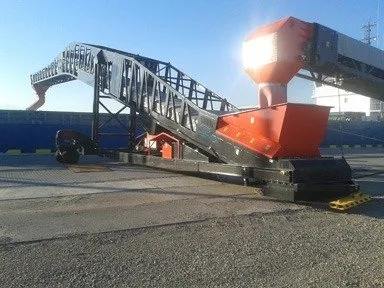

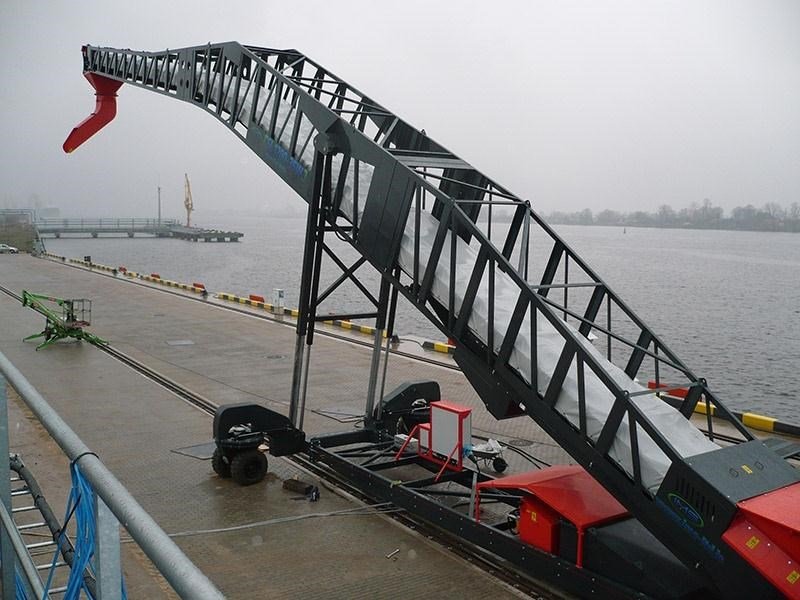

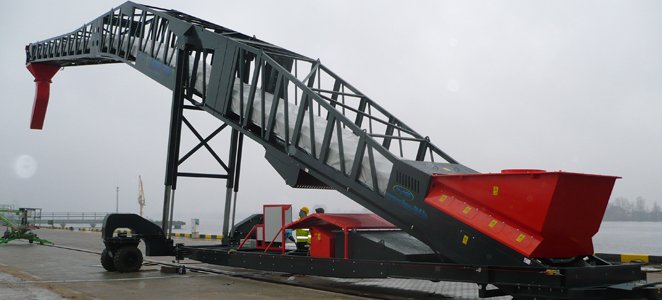

IMS offers a range of mobile Ship Loading Conveyors designed to accommodate various applications and material types.

These custom-built units are tailored to meet the specific needs of ports and terminals, with the flexibility to be fed directly by wheel loaders, excavators, Bulk Feeders, or Link Conveyors.

IMS Ship Loader Conveyors are utilized for handling materials such as aggregates, sand, gravel, coal, ore, grain, wood chips, and fertilizers.

Key Features:

• Available with electric or diesel engine power

• Capacities ranging from 100 to 1000 tph, depending on material type

• Mounted on crawler tracks or wheels

• Fixed travel or radial movement options

• Adjustable inclination for optimal performance

• Rotating or flexible outlet discharge chutes

• Customizable configurations to meet specific requirements

• Belt widths from 800mm to 1500mm

• Conveyor lengths available in 5m increments, from 20m to 35m Optional Add-ons:

• Belt weighers for accurate material measurement

• Magnets for separating metal contaminants

• Radio remote control for full operational control

• Variable speed control for greater flexibility

• PVC or steel belt covers for enhanced durability

• Full-length skirting for handling challenging materials

• Powered radial drive for increased maneuverability

• Hoppers and wear plates available in mild steel, Hardox, or stainless steel
